launchd - Script Management in macOS

Edit - Oct 24, 2023

After upgrading to macOS Sonoma, my custom agent for automatically syncing some directories on my machine using rsync broke, due to what I believe to be a permissions issue. For this reason, I revisited this topic and learned more about this system in order to see if I could get around these permissions issues. This included adding more notes in general as I read through man pages and other articles.

Further, the original authoring of this document usually referred to the legacy use of launchctl, sometimes called launchctl 1. The updates here try to incorporate “launchctl 2” subcommands and usage.

What is it?

Used on macOS for managing agents and daemons and can be used to run scripts at specified intervals
- macOS’s competitor to cron, along with other things
Runs Daemons and Agents
During boot, launchd is invoked by the kernel to run as the first process on the system and to further bootstrap the rest of the system

What is a Daemon?

A daemon is a program running in the background without requiring user input.

Used to perform daily maintenance tasks or do something when an event occurs at the OS level, like when a device is connected.
Runs on behalf of the root user of the machine
These should NOT attempt to display UI or interact directly with a user’s login session
- Any work that involves interacting with a user should be done through “agents”

What is an Agent?

Basically the same thing as a daemon, but runs on behalf of the logged-in user, not the root user

How to use it?

Important Distinction: You don’t interact with launchd directly
- Use launchctl to load or unload daemons and agents instead
Steps to set up an agent or daemon:
1. Create a program that you want to run in the background
2. Create a .plist file describing the job to run (See below for how to author one)
3. Store it in the relevant spot based on whether or not you’re creating a daemon or an agent, and why type of agent or daemon that you want to include (see screenshot below)
4. Use launchctl to load the job and set it to run
  - Note: See the section below on how to interact with launchctl and its various subcommands
  - Note that you only have to load jobs once when you first author / install the service. Upon reboot / login all agents & daemons will be loaded and run according to the .plist running commands

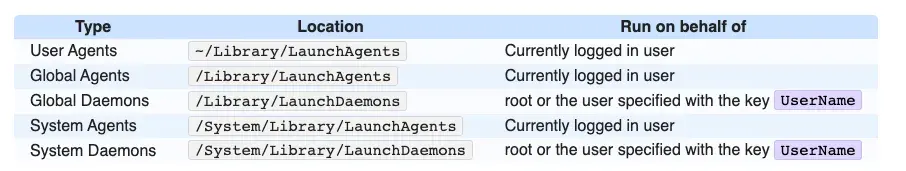

plist Locations Overview

launchctl Subcommand Domains, Services, and Endpoints

Many subcommands in launchctl take a specifier which indicates the target domain or service for the subcommand

Terminology

Domain: Manages the execution policy for a collection of services
- Advertise endpoints in a shared namespace
Service: virtual process that is always available to be spawned in respond to a demand
Endpoint: Each service has a collection of endpoints
- Sending a message to one of those endpoints will cause the service to launch on demand

Target Domains

system/[service-name]
- Targets the system domain or a service within the system domain
- Manages the root Mac boostrap and is considered a privileged execution context
- root privileges are required to make modifications
user/<uid>/[service-name]
- Targets the user domain for the given UID or a service within that domain
- User domain may exist independently of a logged-in user
- User domain do not exist on iOS
login/<asid>/[service-name]
- Targets a user-login domain or service within that domain
- Created when the user logs in via the GUI
- Identified by the audit session identifier
- User-login domains do not exist on iOS
gui/<uid>/[service-name]
- Another form of the login specifier
- Rather than specifying the domain by its ASID (audit session identifier)
- This targets the domain based on which user it is associated with and is generally more convenient
- Note: Usually you use gui/501 here for your logged in user, but you can access your user ID from running echo $UID in your terminal to find the exact number to use
pid/<pid>/[service-name]
- Targets the domain for the given PID or service within that domain

Important Subcommands

Note: There are a number of subcommands listed in documentation that are now considered “legacy”, like load, unload, start, stop, list, etc… Below is the list of updated subcommands and their uses

Other Important Note: [service-target] (seen below in many commands) takes the form of <domain-target>/<service-id>

bootstrap <domain-target> [service-path]
- Bootstraps domains and services
- Basically this is what you should use instead of traditional load calls
- Ex. launchctl bootstrap gui/501 ~/Library/LaunchAgents/dev.johnturner.ObsidianFoamReconciler.plist
kickstart [service-target]
- Instructs launchd to run the specified service immediately
- Replaces traditional start commands
- Ex. launchctl kickstart gui/501/dev.johnturner.ObsidianFoamReconciler
enable [service-target]: Enables the service in the requested domain
- This state persists across boots of the device
- May only target services within the system domain or user and user-login domains
disable [service-target]: Disables the service in the requested domain
- This state persists across boots of the device
- Once disabled, a service cannot be loaded in the domain until it is once again enabled
- May only target services within the system domain or user and user-login domains

How to write a `.plist` file

The majority of the learning that I needed in order to run my background job came from the first link in the Further Reading section below

A .plist file is valid for loading into launchd with just the Label and Program or ProgramArguments attributes, but the background job won’t run, since it doesn’t know when to invoke it
It’s an xml document
Some key attributes to include:
- Label (required): The name of your job, should be unique and follow “reverse domain” naming convention
- Program (required if ProgramArguments isn’t present): The path to the executable on your system
- ProgramArguments (required if Program isn’t present): Array of string arguments including the path to your executable and any other arguments
  - All strings are concatenated together with spaces between them to make up the full command
- ServiceDescription: Human-readable description of your service
- Working Directory: Can set the working directory when your program runs
- RunAtLoad: Should we run the job at boot time (for daemons) / login time (agents)?
- StartCalendarInterval: Dictionary used to specify cron-like running intervals, like “run this every day at 3:00 AM”
  - Available keys:
    - Month
    - Day
    - Weekday
    - Hour
    - Minute
  - Important Note: omitted keys are interpreted as *
- StartInterval: Used to run the background job every n seconds
- StandardErrorPath: Useful for indicating a specific log file location for when errors arise in your service
- EnvironmentVariables: Allows you to set different environment variables that can be accessed as part of your program
  - Common entries here include setting your PATH when running different scripts.
    - Given that your service is running outside of the context of loading a terminal / shell session, your shims and other enhancements usually found in a .bashrc, .bash_profile, or .zshrc file won’t be loaded; therefore you have to load those up here or your service might not run as expected

Example `.plist` file

This is an example .plist file that I use to run a background job to sync my Obsidian-based Second Brain to the git-based version of the repo, which then runs some formatting and other processes.

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
    <dict>
        <key>Label</key>
        <string>dev.johnturner.ObsidianFoamReconciler</string>

        <key>ServiceDescription</key>
        <string>Regular sync between Obsidian Second Brain vault and my git-based Second Brain</string>

        <key>Program</key>
        <string>/Users/johnturner/second-brain/sync-from-obsidian.sh</string>

        <key>WorkingDirectory</key>
        <string>/Users/johnturner/second-brain</string>

        <key>StandardErrorPath</key>
        <string>/Users/johnturner/Desktop/reconciler-error.log</string>

        <key>EnvironmentVariables</key>
        <dict>
            <key>PATH</key>
            <string>
                /usr/local/opt/gettext/bin:/usr/local/bin:/usr/bin:/bin:/usr/sbin:/sbin
            </string>
        </dict>

        <key>StartCalendarInterval</key>
        <dict>
            <key>Hour</key>
            <integer>11</integer>
            <key>Minute</key>
            <integer>0</integer>
        </dict>

        <key>RunAtLoad</key>
        <false />
    </dict>
</plist>

Misc. Notes

According to Apple’s documentation, “the appropriate location for executables that you launch from your job is /usr/local/libexec”
- Though, as seen in the example above, you can specify a different program location and working directory
